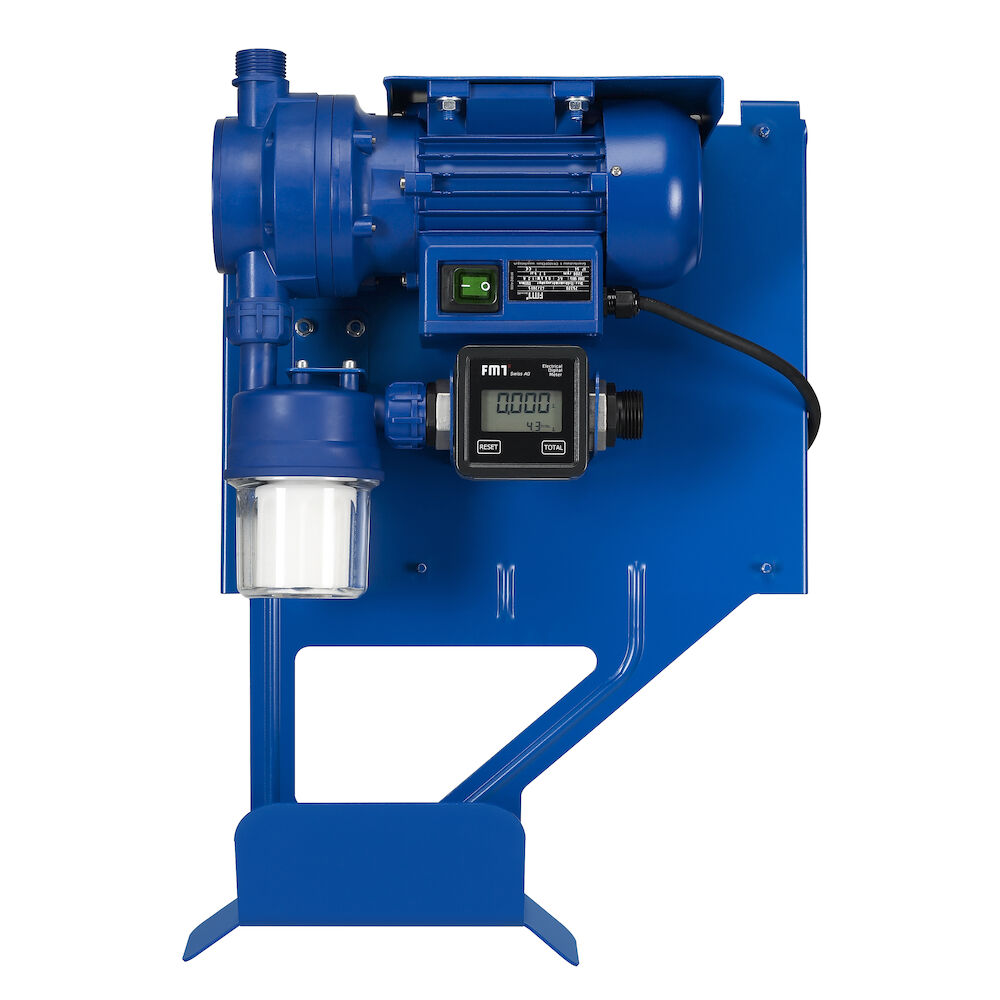

Premium 120V Tote Pump System with Stainless Steel Nozzle

Premium 120V Tote Pump System with Stainless Steel Nozzle

Part #DEFTPP120
Request a Quote

Technical Documentation:

Product Description

The Tote Pump System is not just a name. The Premium Tote System offers the very best in design, quality, and assembly from the exterior housing, to the interior components, to the in-line digital meter. This pump system is built to be the quality workhorse you expect from a premium BlueDEF pump.

Features & Benefits:
  • The Premium Tote Pump System includes 120V diaphragm tote pump, discharge hose, suction hose, in-line digital meter, stainless steel automatic shut-off nozzle, and filter assembly
  • Offers easily accessible and replaceable filter cartridge
  • Operability when temperature fluctuations occur and in areas where wide temperature ranges are common
  • 3 Year Limited Liability Warranty

Specifications, Applications and Product Details

  • • Diaphragm pump with integrated bypass
    • Nozzle dock shut off
    • Automatic shut off nozzle w/ 20 Ft DEF hose
    • In-line digital meter
    • DEF discharge hose with 90° female with swivel joint
    • DEF suction hose, 3.28 ft, with bend 90° G 1'' female and straight hose fitting
    • Filter unit
    • Filter candle, replaceable via unscrewable filter cap
    • Standard filter cartridge is easily replaceable
    • System can be operated without filter cartridge
    • The enclosed electric motor prevents the formation of condensation that commonly causes short-circuits
  • Properties
    Connecting cable, length (ft): 5.3 ft
    Connection discharge side: G 1'' male
    Connection suction side: G 1'' male
    Total Equipment Dimensions LxWxH (inch): 15.35 x 9.45 x 26.38
    Total Equipment Weight Empty (lb): 40.7
    Filter surface (cm²): 190 cm²
    Separation efficiency (µ): 50 µ
    Maximum Delivery Rate (gpm): 9.2 gpm
    Maximum Suction Height (ft): 9.8 ft
    Pump Design: diaphragm, self-priming
    Pumping Media: DEF
    Diaphragm and Sealings: Ethylene Propylene-Dien Rubber/Viton
    Pump Housing and Pump: PP
    Discharge height max. (ft): 24.6 ft
    Duty cycle (min): continuous operation min
    Frequency (Hz): 60 Hz
    Highest permissible limit temperature (°F): 155/311 °C
    Insulation class: F
    Power (kW): 0.32
    Pump Power consumption (A): 2.8 A
    Rotation Speed (rpm): 3450 rpm
    Safety class: IP 54
    Thermal protection: self-resetting
    Type of Construction: IMB 3
    Voltage (V): 120 A
