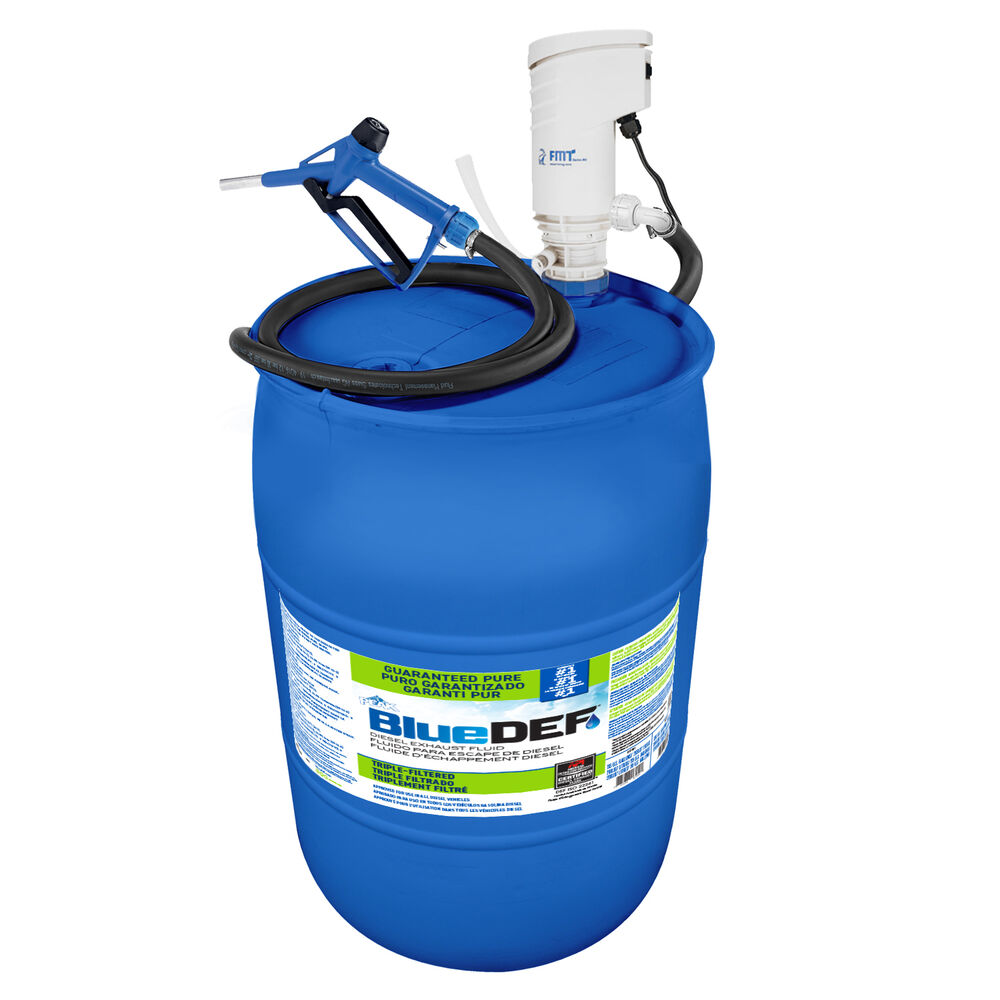

The 120V Drum Pump System provides everything you need
to pump diesel exhaust fluid efficiently.
- Drum Pump System includes 120V axial gear pump, discharge hose, suction hose, drum adapter coupling, and poly manual nozzle
- Can be manually operated in case of an electrical power outage
- Designed exclusively for use as a drum pump
- 1 Year Limited Liability Warranty
Specifications, Applications and Product Details
-
• Axial wheel pump with manual pump assembly
• Illuminated on/off switch
• Motor with thermal protection switch, self-resetting
• US plug, 6.6 ft cable
• Drum adapter coupling
• DEF discharge hose with 90° female with swivel joint
• Poly nozzle w/ 13 Ft DEF hose
• DEF suction hose, 5.25 ft, with foot valve
• Drum adapter coupling, for plastic container, connecting
thread G 2" -
Properties Connecting cable, length (ft): 6.6 ft Connection container: G 2'' male, drum adapter 64x5 Connection discharge side: G 1'' male Connection suction side: Hose fitting DN 19 Maximum Delivery Rate (gpm): 13.7 gpm Maximum Suction Height (ft): 6.6 ft Pump Design: axial gear Pumping Media: DEF Motor Shaft: stainless steel 1.4021 Pump Housing and Pump: PA 6 Discharge height max. (ft): 49.2 ft Duty cycle (min): continuous operation min Frequency (Hz): 60 Hz Power (kW): 320 Pump Power consumption (A): 1.8 A Rotation Speed (rpm): 7500 rpm Safety class: IP 34 Thermal protection: self-resetting Type of Construction: IMB 5 Voltage (V): 120 A
